GAD506

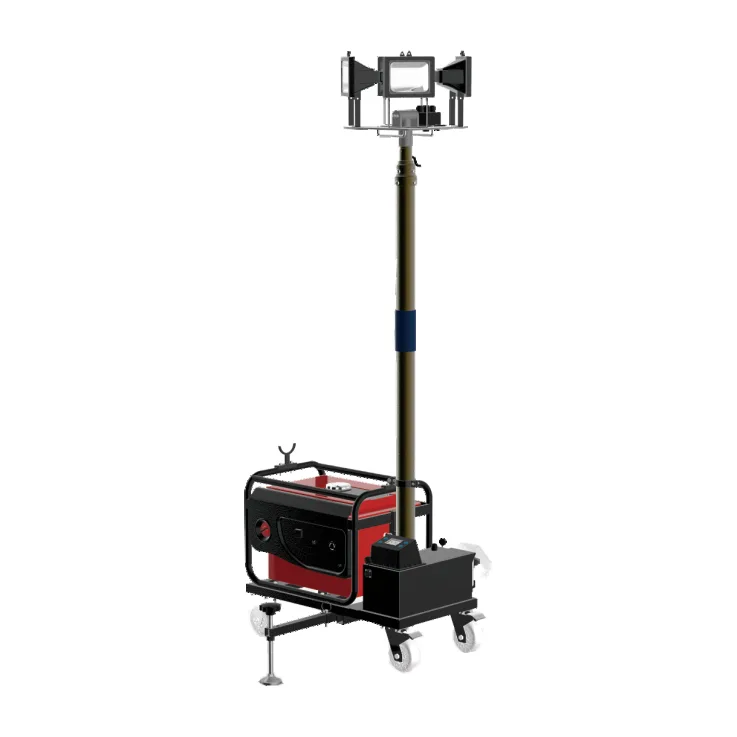

Large Lifting Lighting Unit
Generator-powered tower with pneumatic lift to 4.5 m or 6 m and LED, halogen or metal-halide lamps.
General industrial model, not Ex-certified. Do not use in classified hazardous areas.
- Weight
- Lamp head 8 kg, mast 8 kg, 2 kW generator 40 kg
Specifications
| Ingress protection | IP65 |
|---|---|
| Lamps | 4 × 100 W / 4 × 200 W LED, 4 × 500 W / 4 × 1000 W halogen, or 2 × 400 W / 2 × 1000 W metal halide |
| Luminous flux (LED) | 4 × 12,000 lm or 4 × 24,000 lm |
| Generator | 2000 W or 5000 W, AC 220 V / 50 Hz |
| Fuel tank | 15 L or 25 L, about 13 h per fill |
| Lift | Pneumatic, 1.8 m to 4.5 m or 6 m, 30 ± 10 s |
| Control | Manual + remote |
| Dimensions | 1550 × 500 × 800 mm (2 kW), 1580 × 600 × 900 mm (5 kW) |
| Weight | Lamp head 8 kg, mast 8 kg, 2 kW generator 40 kg |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- Lamp type and power configured to order
- Runs on mains for continuous use
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual. How OEM works
Price and lead time for GAD506
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
