HZ6129

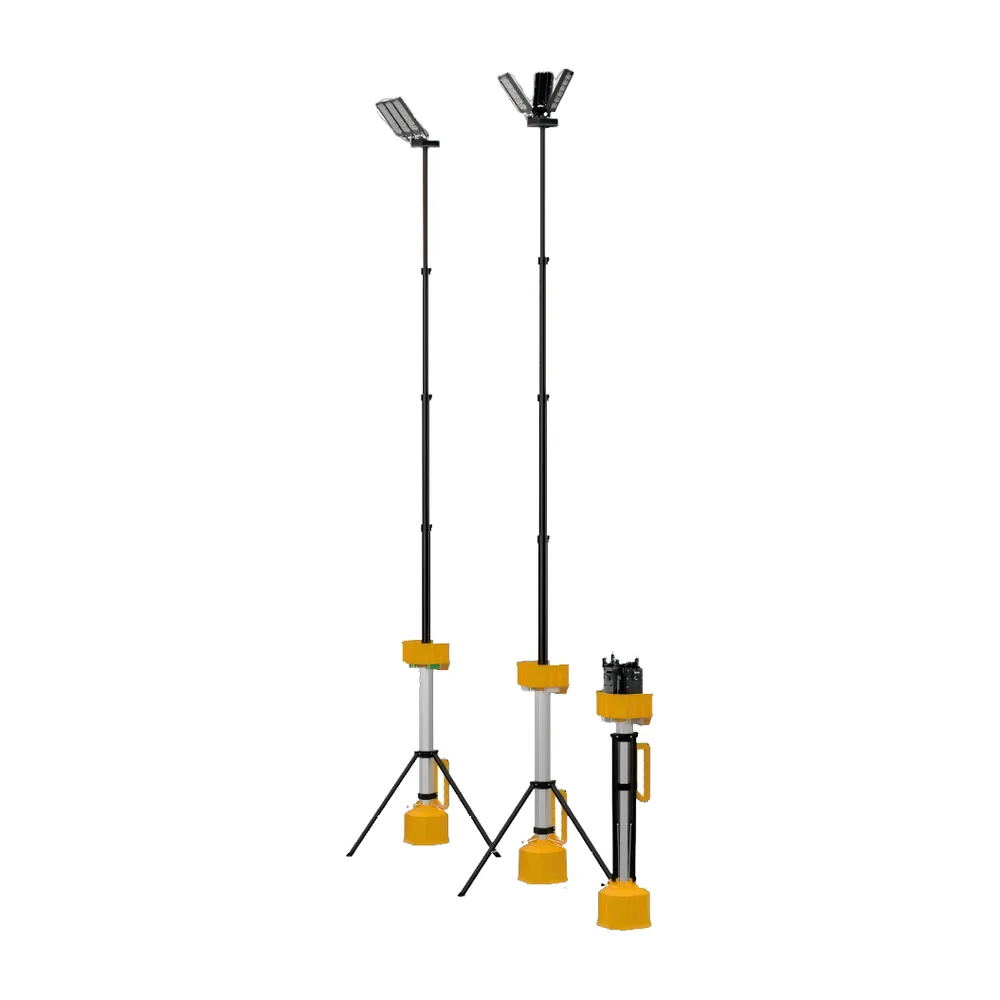

Explosion-Proof Panoramic Lighting System, 3.8 m
180W tripod area light that rises to 3.8 m, lights 360° or one side, and runs 7 hours with all heads on.
Ex eb ib mb IIC T6 Gb
ExExplosion protected, built to the IEC 60079 standardsebIncreased safety: no arcs, sparks or hot spots in normal useibIntrinsically safe circuit, safe even with one faultmbEncapsulation: spark-capable parts sealed in compoundIICGas group IIC: hydrogen, acetylene and all IIA and IIB gasesT6Surface temperature never above 85 °CGbHigh protection, for Zone 1 and Zone 2- Rated power
- 180W LED
- Battery capacity
- 25 Ah
- Runtime
- All on ≥7 h, flood ≥13 h, spot ≥13 h
- Weight
- 12 ± 0.5 kg
Specifications
| Ex marking | Ex eb ib mb IIC T6 Gb |
|---|---|
| Ingress protection | IP66 |
| Rated voltage | DC 22.2 V |
| Battery capacity | 25 Ah |
| Rated power | 180W LED |
| LED life | 100,000 h |
| Illuminance at 10 m | 600 lx |
| Beam | Spot + flood |
| Warning lights | Red / blue |
| Dimming | Stepless |
| Runtime | All on ≥7 h, flood ≥13 h, spot ≥13 h |
| Battery life | > 500 cycles |
| Charging time | < 5 h |
| Dimensions | 220 × 228 × 1120 mm stowed, 660 × 760 × 3780 mm raised |
| Weight | 12 ± 0.5 kg |
Supplied in cool white as standard. Warm white is available on request.
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- Three heads aim in any direction for 360° or one-sided lighting
- Five-section mast rises to 3.8 m
- Red-blue warning lights on the front and both sides, visible beyond 1 km
- Bluetooth app control up to 80 m
- Carry by hand or on the back
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual. How OEM works
Price and lead time for HZ6129
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
