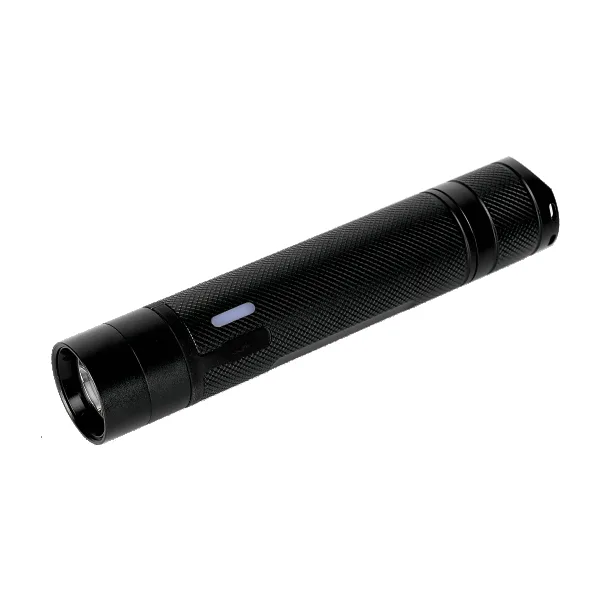

HZ7302A
Mini Explosion-Proof Flashlight with Signal
Pocket flashlight with a red signal light in the tail switch and a separate charger for fire service use.
Ex ib IIC T4 Gb
ExExplosion protected, built to the IEC 60079 standardsibIntrinsically safe circuit, safe even with one faultIICGas group IIC: hydrogen, acetylene and all IIA and IIB gasesT4Surface temperature never above 135 °CGbHigh protection, for Zone 1 and Zone 2- Light source
- 3W LED
- Battery capacity
- 1900 mAh
- Runtime
- High ≥4 h, work ≥8 h
- Weight
- 88 ± 5 g
Specifications
| Ex marking | Ex ib IIC T4 Gb |
|---|---|
| Ingress protection | IP66 / IP68 (5 m, 2 h) |
| Light source | 3W LED |
| Rated voltage | DC 3.7 V |
| Battery capacity | 1900 mAh |
| Runtime | High ≥4 h, work ≥8 h |
| Charging time | ≤4 h |
| Dimensions | Ø23 × 121 mm |
| Weight | 88 ± 5 g |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- Red signal function on the tail button
- Supplied with a separate fire-service style charger
- Submersible to 5 m for 2 hours
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual, charger plug type. How OEM works
Price and lead time for HZ7302A
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
