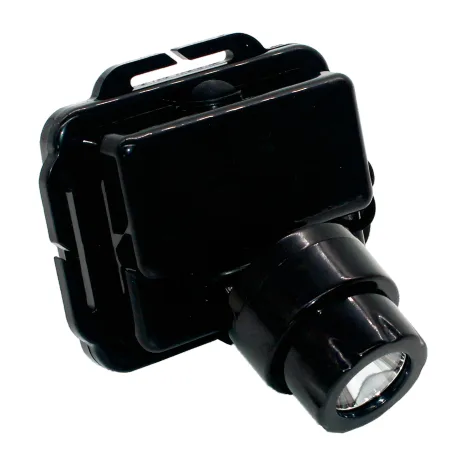

HZ5130
Mini Explosion-Proof Headlamp
93 g headlamp with a 16-hour working setting.
Ex ib IIC T4 Gb
ExExplosion protected, built to the IEC 60079 standardsibIntrinsically safe circuit, safe even with one faultIICGas group IIC: hydrogen, acetylene and all IIA and IIB gasesT4Surface temperature never above 135 °CGbHigh protection, for Zone 1 and Zone 2- Light source
- 3W LED
- Battery capacity
- 2000 mAh
- Runtime
- High ≥8 h, work ≥16 h
- Weight
- 93 ± 5 g
Specifications
| Ex marking | Ex ib IIC T4 Gb |
|---|---|
| Ingress protection | IP66 |
| Light source | 3W LED |
| Rated voltage | DC 3.7 V |
| Battery capacity | 2000 mAh |
| Runtime | High ≥8 h, work ≥16 h |
| Charging time | ≤8 h |
| Dimensions | 78 × 57 × 64 mm |
| Weight | 93 ± 5 g |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- 93 g, comfortable for a full shift
- 16 hours on the working setting
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual, charger plug type. How OEM works
Price and lead time for HZ5130
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
