HZ6103

Explosion-Proof Work Light

Name: HZ6103 50W Explosion-Proof Work Light
Brand: ExLight Sourcing
SKU: HZ6103

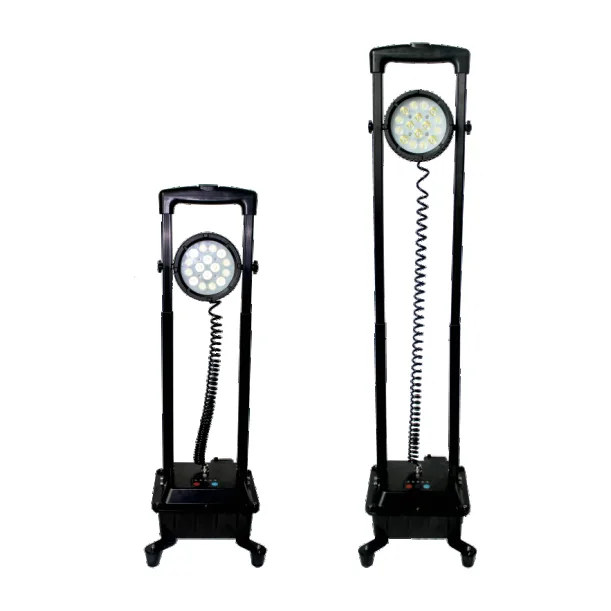

50W battery work light on a telescopic stand that reaches 1.5 m.

Ex db eb ib mb IIC T6 Gb

ExExplosion protected, built to the IEC 60079 standards

dbFlameproof enclosure: an internal ignition cannot escape

ebIncreased safety: no arcs, sparks or hot spots in normal use

ibIntrinsically safe circuit, safe even with one fault

mbEncapsulation: spark-capable parts sealed in compound

IICGas group IIC: hydrogen, acetylene and all IIA and IIB gases

T6Surface temperature never above 85 °C

GbHigh protection, for Zone 1 and Zone 2

Light source: 50W LED
Battery capacity: 10 Ah
Runtime: All on: high ≥5 h, work ≥10 h; spot or flood: high ≥10 h, work ≥18 h
Weight: ≤7 kg

Specifications

Ex marking	Ex db eb ib mb IIC T6 Gb
Ingress protection	IP66
Light source	50W LED
Rated voltage	DC 22.2 V
Battery capacity	10 Ah
Runtime	All on: high ≥5 h, work ≥10 h; spot or flood: high ≥10 h, work ≥18 h
Charging time	≤6 h
Dimensions	280 × 290 × 290 mm (stowed), 1500 mm (raised)
Weight	≤7 kg
