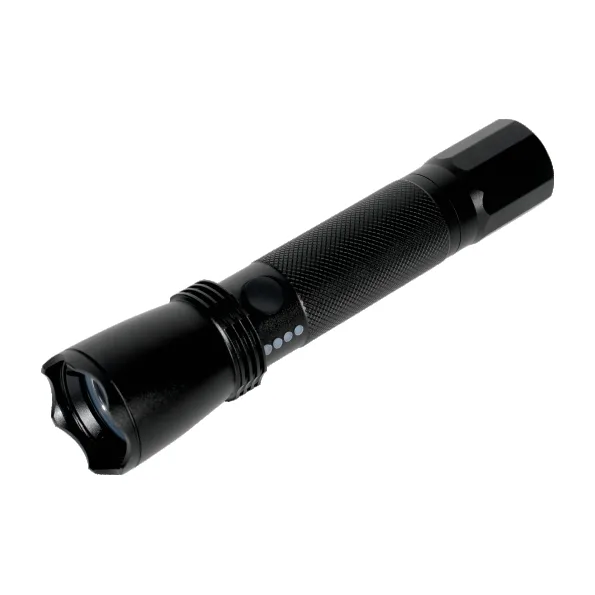

HZ7623A
Explosion-Proof Flashlight, USB-C
The HZ7623 with USB-C charging and a four-step battery gauge.
Ex ib IIC T4 Gb
ExExplosion protected, built to the IEC 60079 standardsibIntrinsically safe circuit, safe even with one faultIICGas group IIC: hydrogen, acetylene and all IIA and IIB gasesT4Surface temperature never above 135 °CGbHigh protection, for Zone 1 and Zone 2- Light source
- 3W LED
- Battery capacity
- 2200 mAh
- Runtime
- High ≥8 h, work ≥16 h
- Weight
- 178 ± 5 g
Specifications
| Ex marking | Ex ib IIC T4 Gb |
|---|---|
| Ingress protection | IP66 |
| Light source | 3W LED |
| Rated voltage | DC 3.7 V |
| Battery capacity | 2200 mAh |
| Runtime | High ≥8 h, work ≥16 h |
| Charging time | ≤8 h |
| Dimensions | Ø35 × 157 mm |
| Weight | 178 ± 5 g |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- USB-C charging, no proprietary cradle
- Four-segment battery indicator
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual, charger plug type. How OEM works
Price and lead time for HZ7623A
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
