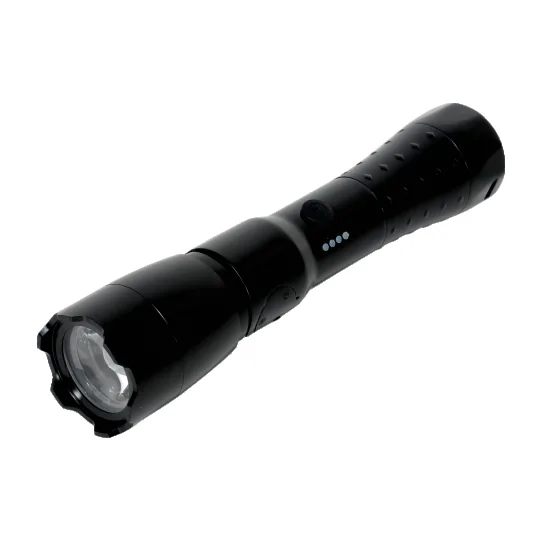

HZ7633/HZ7633A
Heavy-Duty Explosion-Proof Flashlight
Zoom flashlight with a head that tilts through 90° and a magnetic tail. 3W/2.6 Ah or 5W/5 Ah versions.
Ex ib IIC T4 Gb
ExExplosion protected, built to the IEC 60079 standardsibIntrinsically safe circuit, safe even with one faultIICGas group IIC: hydrogen, acetylene and all IIA and IIB gasesT4Surface temperature never above 135 °CGbHigh protection, for Zone 1 and Zone 2- Light source
- 3W or 5W LED
- Battery capacity
- 2.6 Ah or 5 Ah
- Runtime
- High ≥10 h, work ≥20 h
- Weight
- 488 g / 535 g ± 5 g
Specifications
| Ex marking | Ex ib IIC T4 Gb |
|---|---|
| Ingress protection | IP66 |
| Light source | 3W or 5W LED |
| Rated voltage | DC 3.7 V |
| Battery capacity | 2.6 Ah or 5 Ah |
| Runtime | High ≥10 h, work ≥20 h |
| Charging time | ≤8 h |
| Dimensions | Ø50 × 227 mm |
| Weight | 488 g / 535 g ± 5 g |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- Head tilts through 90° to aim the beam
- Telescopic zoom
- Magnetic tail for hands-free mounting
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual, charger plug type. How OEM works
Price and lead time for HZ7633/HZ7633A
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
