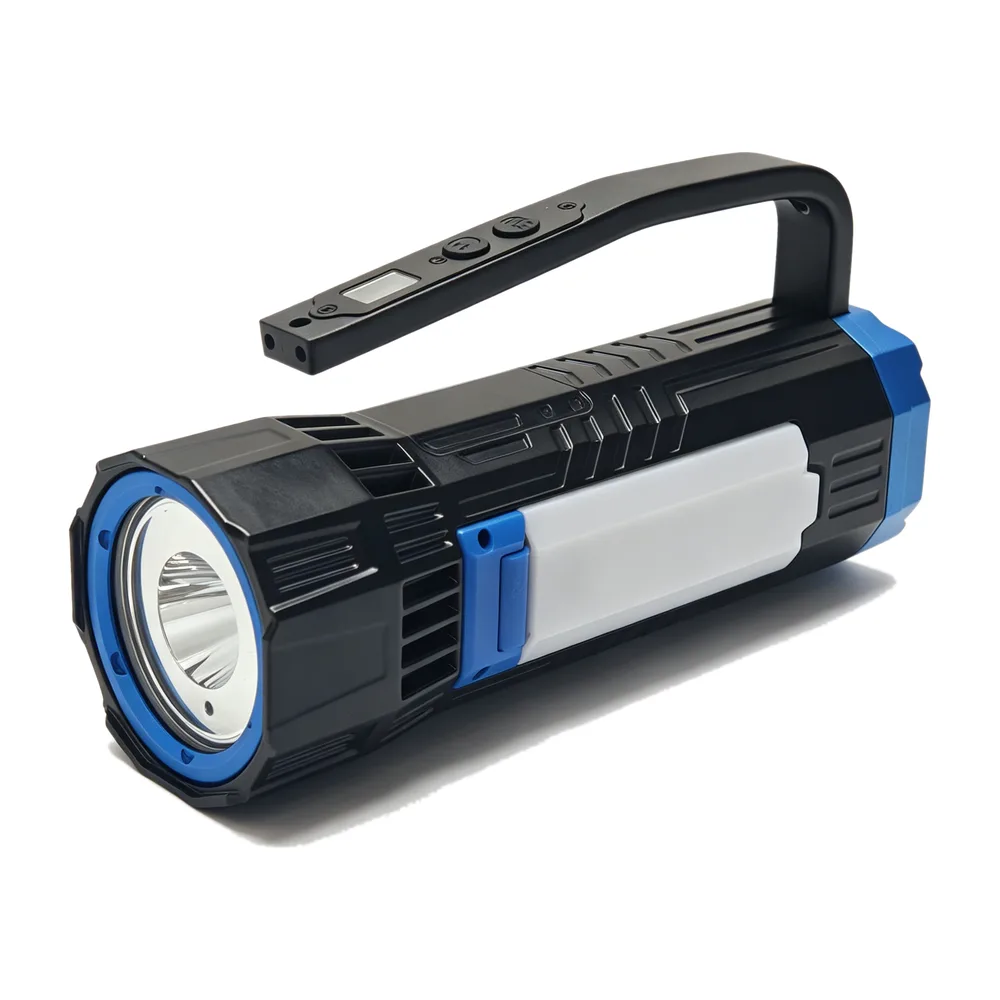

HZ7109
Multi-Function Explosion-Proof Hand Lamp
Hand-held searchlight with a 12W or 24W LED and up to 100 hours on the economy setting, in three versions.
Explosion-proof model. Ask us for the certificate and full marking.
- Light source
- 12W LED (A/B), 24W LED (C)
- Battery capacity
- 5 Ah
- Weight
- 1605 ± 5 g
Specifications
| Ex marking | Ex, marking on request |
|---|---|
| Ingress protection | IP66 / IP68 |
| Versions | HZ7109A / HZ7109B: 12W; HZ7109C: 24W with fold-out side flood panels |
| Light source | 12W LED (A/B), 24W LED (C) |
| Rated voltage | DC 7.4 V (A/B), DC 14.8 V (C) |
| Battery capacity | 5 Ah |
| Runtime (A/B) | High ≥5 h, work ≥10 h, economy ≥100 h |
| Runtime (C) | High ≥6 h, work ≥12 h, economy ≥100 h, side flood ≥12 h |
| Charging time | ≤3 h |
| LED life | >100,000 h |
| Battery life | >1000 cycles |
| Dimensions | 229 × 77 × 117 mm |
| Weight | 1605 ± 5 g |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features

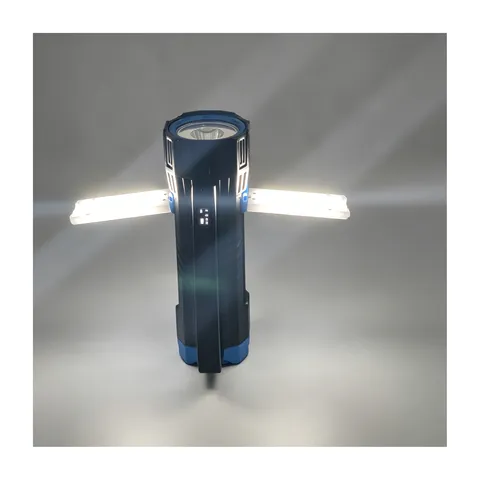

- Three versions: 12W (A/B) or 24W with fold-out side flood panels (C)
- Up to 100 hours on the economy setting
- Full charge in 3 hours
- Folding carry handle; stands upright or on its side
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual, charger plug type. How OEM works
Price and lead time for HZ7109
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
