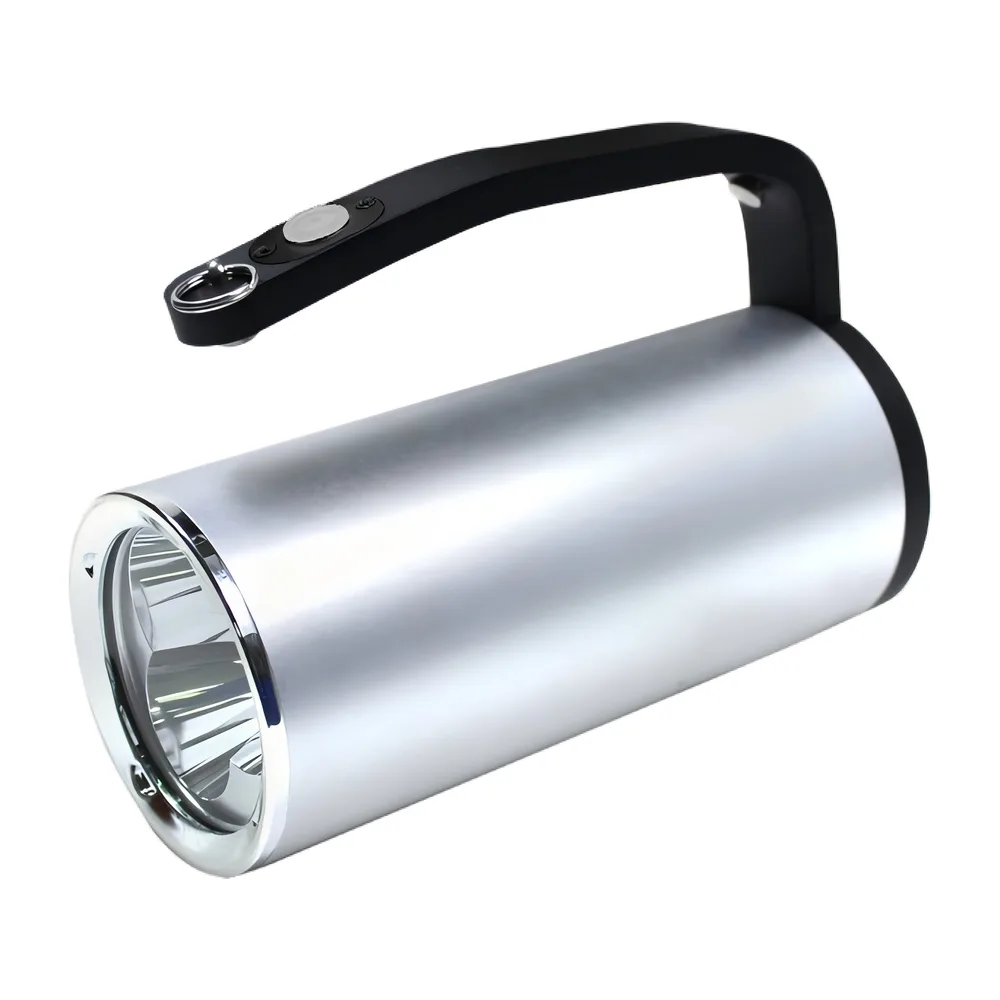

HZ7102
Hand-Held Explosion-Proof Searchlight
3 × 3W hand searchlight with a 6600 mAh battery.
Ex db ia IIC T6 Gb
ExExplosion protected, built to the IEC 60079 standardsdbFlameproof enclosure: an internal ignition cannot escapeiaIntrinsically safe circuit, safe even with two faultsIICGas group IIC: hydrogen, acetylene and all IIA and IIB gasesT6Surface temperature never above 85 °CGbHigh protection, for Zone 1 and Zone 2- Light source
- 3 × 3W LED
- Battery capacity
- 6600 mAh
- Runtime
- High ≥8 h, work ≥16 h
- Weight
- 733 ± 5 g
Specifications
| Ex marking | Ex db ia IIC T6 Gb |
|---|---|
| Ingress protection | IP68 |
| Light source | 3 × 3W LED |
| Rated voltage | DC 3.7 V |
| Battery capacity | 6600 mAh |
| Runtime | High ≥8 h, work ≥16 h |
| Charging time | ≤8 h |
| Dimensions | Ø69 × 156 mm |
| Weight | 733 ± 5 g |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- Flameproof body with intrinsically safe circuit
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual, charger plug type. How OEM works
Price and lead time for HZ7102
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
