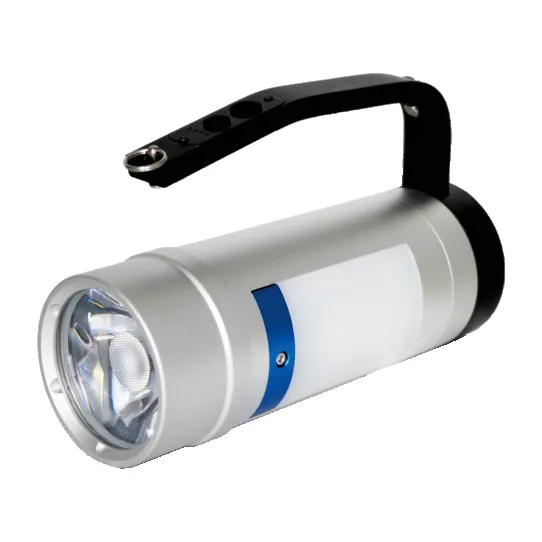

HZ7106A
Explosion-Proof Searchlight with Side Flood
12W spot beam plus 2 × 6W side flood panels, so one light covers both search and area work.
Ex db ia IIC T6 Gb
ExExplosion protected, built to the IEC 60079 standardsdbFlameproof enclosure: an internal ignition cannot escapeiaIntrinsically safe circuit, safe even with two faultsIICGas group IIC: hydrogen, acetylene and all IIA and IIB gasesT6Surface temperature never above 85 °CGbHigh protection, for Zone 1 and Zone 2- Light source
- 12W spot + 2 × 6W flood LED
- Battery
- 22.2 V, 2.5 Ah
- Runtime
- Spot high ≥5 h, work ≥10 h; flood high ≥8 / 4 h, work ≥16 / 8 h (one / both sides)
- Weight
- 1301 ± 5 g
Specifications
| Ex marking | Ex db ia IIC T6 Gb |
|---|---|
| Ingress protection | IP66 / IP68 (2 m, 1 h) |
| Light source | 12W spot + 2 × 6W flood LED |
| Battery | 22.2 V, 2.5 Ah |
| Runtime | Spot high ≥5 h, work ≥10 h; flood high ≥8 / 4 h, work ≥16 / 8 h (one / both sides) |
| Charging time | ≤6 h |
| Dimensions | Ø70 × 195 mm |
| Weight | 1301 ± 5 g |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- Spot beam plus side flood panels
- Flood on one or both sides
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual, charger plug type. How OEM works
