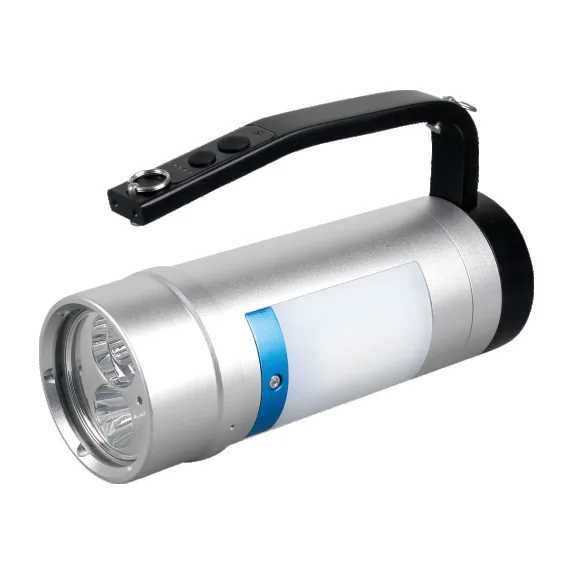

HZ7106C
Explosion-Proof Searchlight with Laser and UV
Adds a 90 mW laser pointer and a 365 nm UV lamp for finding oil leaks.
Ex db ia IIC T6 Gb
ExExplosion protected, built to the IEC 60079 standardsdbFlameproof enclosure: an internal ignition cannot escapeiaIntrinsically safe circuit, safe even with two faultsIICGas group IIC: hydrogen, acetylene and all IIA and IIB gasesT6Surface temperature never above 85 °CGbHigh protection, for Zone 1 and Zone 2- Light source
- 12W spot + 2 × 6W flood LED
- Battery
- 22.2 V, 2.5 Ah
- Runtime
- Spot high ≥5 h, work ≥10 h; UV ≥6 h
- Weight
- 1386 ± 10 g
Specifications
| Ex marking | Ex db ia IIC T6 Gb |
|---|---|
| Ingress protection | IP66 / IP68 (2 m, 1 h) |
| Light source | 12W spot + 2 × 6W flood LED |
| Laser | 90 mW |
| UV light | 12W, 365 nm |
| Battery | 22.2 V, 2.5 Ah |
| Runtime | Spot high ≥5 h, work ≥10 h; UV ≥6 h |
| Charging time | ≤6 h |
| Dimensions | Ø70 × 195 mm |
| Weight | 1386 ± 10 g |
Specifications are from the manufacturer's 2026 catalog. Confirm the exact configuration in your quote.
Features
- Laser pointer for marking targets
- 365 nm UV shows oil and fluid leaks
Used in
Private label options
Laser-engraved or printed logo, housing colour, gift box or carton printing, multilingual manual, charger plug type. How OEM works
Price and lead time for HZ7106C
Tell us the quantity and destination. We send unit prices, lead time and a copy of the certificate.
